Calendar And Barne's Apparatus

Home Physics Heat Calendar And Barne's Apparatus

Calendar And Barne's Apparatus

Category: Physics

Model No:P-695

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s

Product Description

SPECIFICATION

  • Glass Tube It has horizontal corning glass tube open at both ends inside of which a  heating element coil about 40 cm long made of Nichrome wire , is fitted operatable 24V DC.
  • Rubber / Silicon tube Glass tube is connected with transparent tube with both sides with two terminals  and two brass enclosed cups through which water flows coming from constant level tank.
  • Brass cups right side of the cup is having one input for cold water and output to glass tube and one upper side provision for cork with hole for thermometer.
  • LEFT Brass Cup the water so heated by element goes into second cup with two holes for cork for thermometer and one nozzle for inlet of hot water and one nozzle for outlet  of water.
  • Terminals are brought at each end of the tube for the electrical supply.
  • constant level tank (100 x 75 mm dia) fitted  with clamp on a tripod stand for maintaining water level. It is having three  pipes at lower side:- one for input of tap water, one for Input to calendar and barn app and one for output of extra water.
  • NOTE: water must flow slowly to let the input water get heated.
  • NOTE: water must flow slowly to let the input water get heated.



Necessary  Accessories

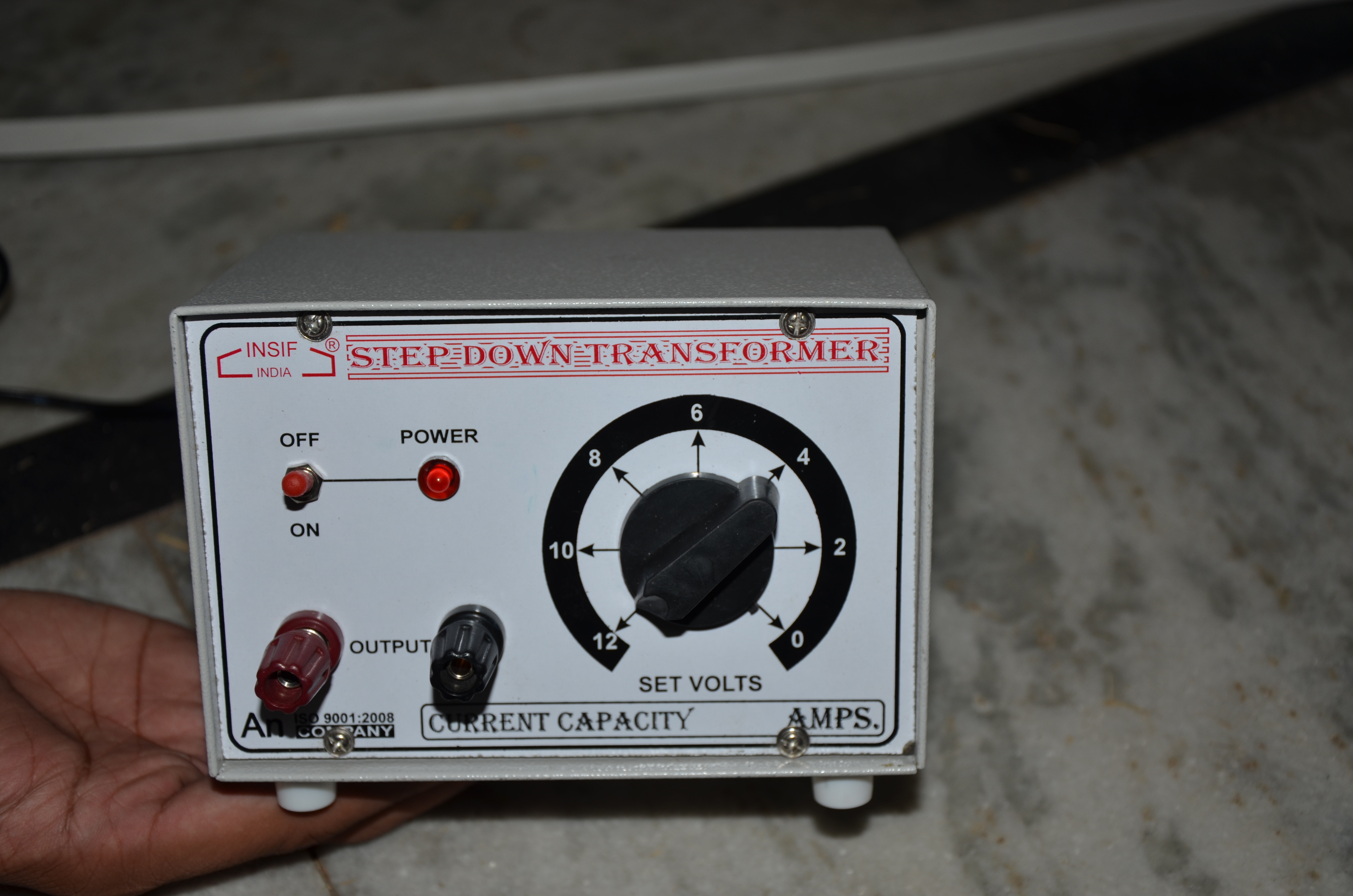

1. Power supply 3 Amp( must) 2. THERMOMETER 110'C 2 NOS

3. Measuring cylinder 100 ml 4. Stop watch

5. AC ammeter 10 amp 6. AC voltmeter 100V

7. Connecting wire

8. Carboy cap 5 ltrs (optional) to be replaced by constant level tank
