Model No:IE-149

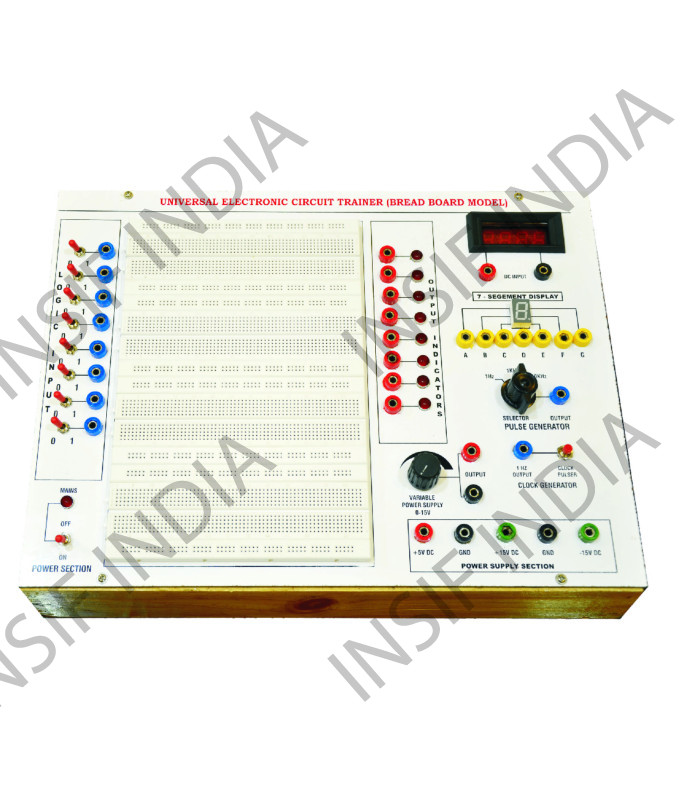

The DIGITAL-ANALOG LAB is intended for elementary as well as advance training of Digital & Analog electronics. The trainer covers regular digital & analog circuits by solder-less interconnections on breadboard and as well as compatible with all optional modules, through use of 2mm brass terminals and patch cords. clock generators, logic level input/output indicators and DC regulated power supplies etc. are in-built.
The DIGITAL-ANALOG LAB is intended for elementary as well as advance training of Digital & Analog electronics. The trainer covers regular digital & analog circuits by solder-less interconnections on breadboard and as well as compatible with all optional modules, through use of 2mm brass terminals and patch cords. clock generators, logic level input/output indicators and DC regulated power supplies etc. are in-built.
Experimental Coverage :
Analog
* Study of Diodes in DC circuits
* Study of Light Emitting Diodes in DC Circuits
* Study of Half & Full wave rectifier
* Study of Zener Diode as a voltage regulator
* Study of transistor series voltage regulator
* Study of transistor shunt voltage regulator
* Study of Low , High, band pass filter
* Study of Monostable multivibrator
* Study of Bistable multivibrator
* Study of Astable multivibrator
Digital
* Logic gates operation
* To verify De-morgan’s theorem With boolean logic equations
* Binary to Gray code conversion
* Gray code to Binary conversion
* Binary to Excess-3 code conversion
* Binary Addition and Subtractor
* Binary Multiplier
* EX-OR gate implementation
* Application of EX-OR gate
* Study of Flip-Flops RS, JK, D&T
* Multiplexer and Demultiplexer
Technical Specifications
Bread Board : Unique solder-less large size, spring loaded breadboard consisting of two Terminal Strips with 1280 tie points and 4 Distribution Strips with 100 tie points each, totaling to 1680 tie points. (Size:112mmx170mm)
Regulated DC Power Supply : +5 V at 1 Amp, -5 V at 1Amp, +15 V/ 500mA, and -15 V/ 500 mA
Function Generator : Sine / Square / Traingular / Pulse waveform frequency 1 Hz to 100 Khz in 5 Steps. Variable in between steps. Sine / Square / Traingular waveform output 50mV ~ 10Vpp variable
Clock Generator : 1Hz
Pulse Generator : 1 Hz, 1KHz , 10KHz Fixed TTL 5V output
Data Switch : 8 independent logic level inputs to select High / Low TTL levels
Logic Indicators : 8 indicators for High / Low status indication of digital outputs
Digital meter (3½Digit) : DC Voltmeter 0-20V
Potentiometers : Potentiometers (1K, 22K, 47k, 100K,)
Seven segment LED Display : BCD to Seven Segment
Power : 230 V ± 10%, 50 Hz
Accessories : Mains cord, Operating and Experimental manual, Red & Black patch cords, Red & Black patch cord(Pin to Pin) & Component Set
Note : Specifications are subject to change without any prior notice.
